Overview of Hemodialysis System
A hemodialysis system is a medical device setup designed to help patients whose kidneys can no longer effectively remove waste products and excess fluids from the body. When the human kidneys lose this essential function, a dialysis setup becomes necessary to take over this role.
1.Basic Components of the System
A typical dialysis unit configuration consists of the following key parts:
· Main Console (Control Unit): The central processing system that manages the entire treatment process, sets operational parameters, and monitors safety throughout dialysis sessions.
· Dialyzer (Filter): The core purification component where the patient’s blood interacts with a specially formulated fluid called dialysate to remove toxins and waste materials.
· Supporting Subsystems:
*Blood Pump and Tubing System: Responsible for safely and smoothly transporting the patient’s blood from the body to the dialyzer and then returning the purified blood back into circulation.
*Water Treatment System: Provides high-purity water that meets strict medical standards for preparing dialysate.
*Dialysate Preparation System: Mixes the treated pure water with specific electrolyte concentrates to produce the dialysate solution used in treatment.
2.Working Principle (Simplified)
· The patient’s blood is drawn through a catheter and enters the dialyzer.
· Inside the dialyzer, blood and dialysate flow on opposite sides of a thin semi-permeable membrane without mixing directly.
· Waste materials and excess fluids pass through the membrane from the blood to the dialysate — this process is known as ultrafiltration.
· The purified blood is returned to the patient’s body, while the used dialysate carrying waste is drained away.
3.Why Component Coordination Matters
Each module in the dialysis setup must operate in tight coordination:
· The blood pump must synchronize with pressure monitoring systems to prevent tubing blockage or rupture.
· The dialysate concentration and flow rate must stay balanced with the ultrafiltration rate to avoid
· A malfunction in any component could compromise treatment safety or efficacy.
4.Common System Types
Based on facility size and usage, hemodialysis systems are generally divided into two main categories:
· Single-Patient Systems:
Commonly used in hospital wards, intensive care units (ICUs), or small dialysis clinics. Compact and flexible, these systems are designed to perform a complete treatment cycle for one patient at a time.
· Centralized Multi-Station Systems:
Typically found in large, independent dialysis centers. A central control unit prepares dialysate in bulk (supported by a central dialysate supply system) and distributes it to multiple treatment stations simultaneously. This setup improves space efficiency and operational consistency.
Description of Core Components
1. Hemodialysis Machine (Main Console)
Core Function:
The primary task of the hemodialysis machine is to ensure that the treatment process is conducted safely and accurately. It performs the following essential functions:
- Drives the blood flow through the system
- Controls the rate of fluid removal
- Maintains the correct chemical composition (electrolyte balance) and temperature of the dialysate
Operation Interface:
Most modern machines feature touchscreen or keypad interfaces for setting parameters and monitoring treatment. The device automatically issues alarms when abnormalities occur, such as pressure deviations, temperature fluctuations, or tubing leaks.
Data Recording:
Contemporary systems are capable of storing treatment data — including session duration, clearance rate, and parameter changes. Many can also connect to computers or hospital networks for real-time monitoring and medical record integration.
2. Dialyzer (Filter)
Main Function:
This is the core site of substance exchange. The patient’s blood flows through fine internal capillary tubes while the specially formulated dialysate flows in the opposite direction outside these tubes. The two fluids are separated by an ultra-thin semi-permeable membrane that allows waste molecules and excess water to pass from the blood into the dialysate, which then carries them away.
Key Parameters:
· Membrane Type:
Classified mainly into high-flux membranes (with larger pores to remove middle molecules) and low-flux membranes (with smaller pores for clearing small-molecule toxins).
These membranes are typically made of synthetic polymer materials that are stable, biocompatible, and efficient at filtration.
· Performance Metrics:
Includes effective surface area, solute clearance efficiency, and resistance to blood flow.
Compatibility:
The dialyzer must match the machine’s operational parameters. The system must be able to accurately calculate ultrafiltration efficiency, and the dialyzer’s resistance should align with the prescribed blood flow rate range.

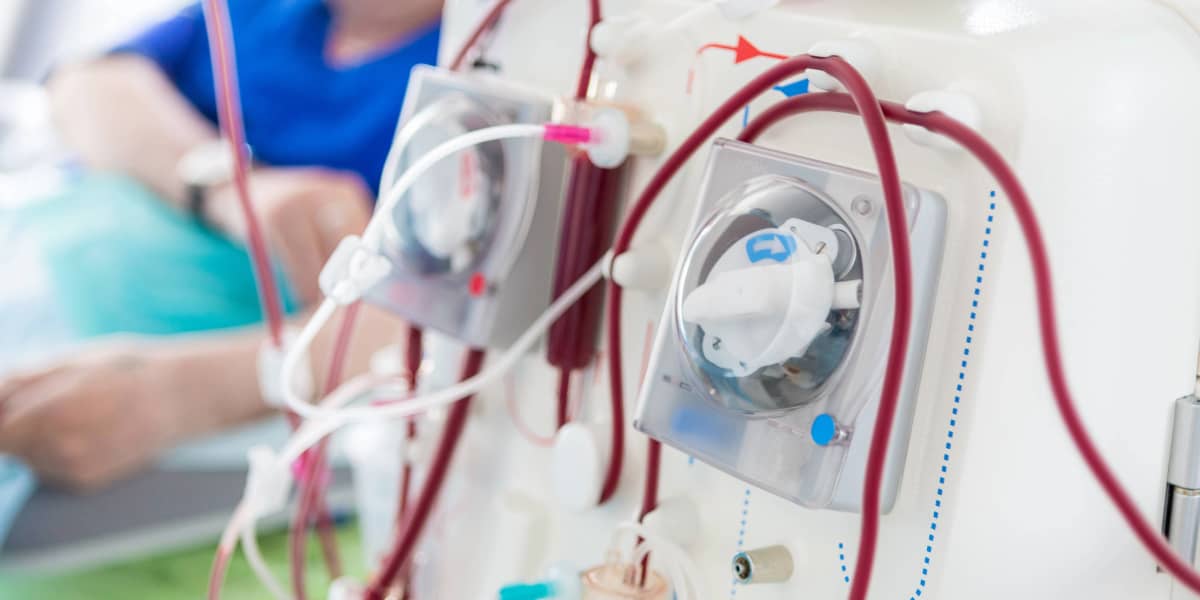

3. Blood Circuit System (Tubing and Pump)
The blood circuit refers to the closed tubing pathway that safely transports blood from the patient’s vascular access to the machine and then back to the patient.
· Blood Pump: Generates the mechanical force needed to circulate blood at a controlled rate.
· Tubing Components: Include separate arterial (outflow) and venous (return) lines, pressure sensors to prevent clotting or blockage, and drip chambers that allow medical staff to visually inspect for air bubbles.
Safety Measures:
· Air Detection: Precise monitoring and alarm functions for any air bubbles in the bloodline.
· Secure Connectors: Robust connection design to minimize risks of disconnection or leakage.
Industry Standards:
High-quality disposable bloodline systems must comply with stringent safety and manufacturing regulations (such as international medical device standards).
4. Water Treatment and Dialysate Preparation System
Importance of Ultra-Pure Water:
Water used to dilute concentrates and produce dialysate must meet extremely high purity standards. Contaminated water containing toxins or bacteria can enter the patient’s bloodstream, posing serious health risks.
Purification Process:
A comprehensive water treatment system typically includes multiple purification stages:
- Pre-filtration to remove metal ions and organic matter (softening and adsorption)
- Reverse osmosis filtration to eliminate most impurities
- Ultraviolet (UV) sterilization to inactivate microorganisms
Final Mixing and Monitoring:
The treated water is mixed with concentrated electrolytes in precise ratios to produce dialysate for treatment. Continuous monitoring ensures that concentration levels and temperature remain within safe limits.
Maintenance Requirements:
Regular cleaning and disinfection of all water treatment components (such as filter replacement and pipeline flushing) are essential for maintaining consistent water quality.
5. Central Dialysate Supply System
This system is primarily installed in large dialysis centers with more than ten treatment stations.
Working Principle:
A dedicated central device purifies the water and mixes it with concentrates in controlled proportions. The resulting dialysate is then distributed through a network of pipelines to each dialysis machine station.
Advantages:
· Ensures uniform dialysate quality with stable composition
· Reduces manual operation and mixing errors
· Enables multiple machines to operate simultaneously with improved cost-efficiency
Key Components:
· Central Mixing Unit, A fixed station responsible for preparing large quantities of dialysate automatically.
· Distribution Pipeline Network, Maintains steady supply with real-time monitoring of temperature and conductivity.
· Support Systems, Temperature control units, conductivity sensors, and safety valves ensure system reliability.
Compatibility:
The mixing ratios of the central supply must be compatible with the technical specifications of different machine brands. Regular disinfection of the pipeline network is essential to prevent microbial growth.
Note: When evaluating equipment, always review the model-specific configuration recommendations and the system’s cleaning efficiency for chemical residues. Strict compliance with sanitation and operational standards is critical for the stable and continuous operation of the entire hemodialysis system.
Compatibility and Interchangeability
Understanding the compatibility of components within a hemodialysis system directly affects both operational safety and treatment efficiency. Components from different brands or models are not always interchangeable, so careful attention must be paid when selecting and matching parts.
1.Why Compatibility Matters
Interface Matching:
The connector size of the dialyzer and the tubing lock fittings must match the main console. A mismatch can lead to fluid leakage or disconnection during treatment.
Membrane Recognition:
The dialysis machine must be able to identify the membrane type of the dialyzer (e.g., high-flux or low-flux). Otherwise, ultrafiltration and solute clearance rates may deviate from preset values.
Communication Protocols:
Some modern systems require dialyzers with built-in chips for automatic parameter recognition. Older machines may be unable to detect or interpret newer chip protocols, causing operational errors.
2.Common Incompatibility Scenarios
|
Problem Type |
Specific Example |
Potential Risk |
|
Connector Size |
Brand A’s tubing connector diameter is larger than Brand B’s machine port |
Cannot install properly or poor sealing |
|
Conductivity Sensor |
Dialysate concentration exceeds the calibration range of the machine |
False alarms or treatment interruption |
|
Data Interface |
Wireless data transmission protocol versions are mismatched |
Treatment records fail to sync with management system |
3.How to Optimize Compatibility
Select Universal Consumables:
· Prioritize products that comply with international interface standards, such as ISO 8637 (bloodline tubing) and ISO 23500 (dialysate).
· Some dialyzers support multi-brand preprogramming, with packaging that specifies a list of compatible machine models.
Simplify Inventory:
· For dialysis centers operating multiple machine types, it is recommended to purchase cross-compatible consumables with a high adaptation rate — for example, Model XYZ tubing that fits over 90% of mainstream dialysis machines.
Supplier Collaboration:
· Request the supplier to provide compatibility documentation, including test reports and lists of supported machine models.
· Confirm that their technical support team can quickly resolve matching issues, such as providing adapters or parameter adjustment guidance.
4.The Importance of International Standards
· ISO 23500: Defines the microbial and chemical purity standards for dialysate, ensuring that solutions from different manufacturers have consistent baseline composition.
· ISO 8637: Standardizes tubing material safety and connector dimensions to minimize the risk of physical connection failure.
· Consumables that meet these international standards can be safely used with most mainstream dialysis setups worldwide.
5.Key Recommendations
Before replacing or integrating new components, always:
① Check the compatibility list provided in the main console’s user manual.
② Conduct small-scale trial runs to verify stable performance.
③ Keep supplier technical support contact information readily available for quick troubleshooting.
Hospital System Installation
A well-planned installation layout is the foundation for the safe and efficient operation of a hemodialysis system. Proper planning should take into account spatial layout, water and power supply, infection control, and compliance with medical regulations.
1.Spatial Planning
Treatment Unit Layout:
· Each dialysis station should provide adequate space to ensure smooth patient transfer and access for emergency equipment.
· The nurses’ workstation should be centrally located to shorten response time and improve patient supervision.
Infection Control Design:
· Zoning: Separate clean areas (for storing consumables and medications) from contaminated areas (for waste liquid and biohazard handling).
· One-way Flow: Patient movement, staff workflow, and waste disposal paths should be clearly separated to prevent cross-contamination.
2. Water and Power Configuration
Water System:
· Inlet Water Quality: The water treatment unit must be connected to municipal water sources that meet medical-grade quality standards.
· Wastewater Discharge: Dialysis waste fluid must be drained through a corrosion-resistant pipeline that is independent of the domestic sewage system.
Power Supply:
· The main electrical circuit should have an independent voltage stabilizer to prevent damage to sensitive components from power fluctuations.
· An Uninterruptible Power Supply (UPS) must be installed to ensure uninterrupted treatment in case of temporary power failure.
3. Safety and Regulatory Compliance
Infection Control:
· Walls and floors of the treatment area should be made of seamless, antibacterial materials that are easy to clean and disinfect.
· Each dialysis bed should be equipped with a hand sanitizing unit and an independent waste container.
Regulatory Certification:
All equipment must comply with regional regulatory standards, such as:
· AAMI / ISO standards for dialysis water quality
· CE / FDA safety certifications for medical devices
Emergency Preparedness:
· Evacuation routes must remain unobstructed at all times. Fire safety equipment (e.g., extinguishers and smoke detectors) should be installed according to healthcare facility regulations.
· A designated area must be provided for emergency medical supplies and equipment, including defibrillators and oxygen cylinders.
Maintenance and Calibration
Regular maintenance is the cornerstone of ensuring long-term safety and reliability in a hemodialysis system. A structured maintenance plan should be implemented to cover all key components, calibration routines, and fault-handling procedures.
▼ Key Maintenance Tasks
|
Component |
Maintenance Focus |
Operational Guidelines |
|
Main Dialysis Console |
Surface disinfection and touchscreen calibration |
Wipe the surface with a medical disinfectant after each treatment session |
|
Water Treatment System |
Filter replacement and system disinfection |
Replace pre-filters according to the system prompt (typically every 3–6 months) |
|
Blood and Dialysate Tubing |
Check for aging, leakage, and connector integrity |
Visually inspect tubing elasticity and clarity before each treatment |
|
Central Dialysate Supply System |
Pipeline sterilization and probe calibration |
Perform high-temperature disinfection at least once a week |
▼ Core Calibration Procedures
Sensor Accuracy Verification
· Pressure Sensors: Compare machine readings against a standard pressure gauge (deviation should be <10%).
· Conductivity Sensors: Test with calibration solution; recalibrate if deviations exceed the acceptable range.
· Flow Sensors: Compare actual measured flow rates with displayed values and adjust the pump speed as necessary.
Alarm Function Testing
Perform monthly tests to ensure that all alarm systems respond accurately and promptly:
· Venous Pressure Alarm: Simulate blockage by clamping the venous line.
· Air Bubble Detection: Inject 0.1 ml of air into the tubing to verify alarm activation.
· Blood Leak Alarm: Introduce a small amount of red test liquid into the dialysate circuit to confirm detection.
▼ Troubleshooting Guide
|
Fault Symptom |
Primary Inspection Point |
Temporary Solution |
|
Conductivity Fluctuation |
1. Check if concentrate is depleted |
Suspend treatment and switch to a backup unit |
|
Abnormal Pressure Readings |
1. Look for twisted tubing |
Reposition tubing and reduce blood flow rate |
|
Frequent False Alarms |
1. Sensor contamination |
Clean sensor contacts and request manufacturer firmware update |
▼ Sustainable Operation
Supplier Selection Criteria:
· Must provide year-round technical support, including emergency repair response within 4 hours.
· Should maintain stock of critical spare parts (e.g., blood pump gears, pressure sensor modules).
Maintenance Record Management:
· Maintain a service log documenting the date, maintenance task, operator, and result.
· Keep calibration reports and part replacement records with batch numbers for traceability.
Key Considerations for Selecting a Hemodialysis System
When choosing a suitable hemodialysis system for healthcare institutions of different scales, it is essential to evaluate multiple dimensions such as capacity, cost-efficiency, reliability, and integration capability.
1. Capacity Matching Strategy
|
Institution Type |
Recommended System Features |
Key Advantages |
|
Community Clinics / Small Centers |
Integrated all-in-one machines (combining water treatment and main console) |
Compact design, short workflow paths, ideal for setups with 5–10 dialysis stations |
|
Medium-Sized Dialysis Centers |
Modular centralized dialysate supply systems |
Supports more than 20 stations with shared dialysate supply, reducing per-machine consumable costs |
|
Comprehensive Hospital Dialysis Centers |
Customized modular combinations (independent water treatment + separate main consoles) |
Flexible expansion, isolated unit operation without disrupting overall workflow |
2. Cost-Benefit Analysis
Explicit Costs:
· Initial Investment: Integrated systems have lower upfront costs but limited upgrade options. Modular systems require higher initial investment but offer lower long-term expansion costs.
· Operating Costs: Focus on consumable compatibility. Using machines designed for universal consumables can reduce annual maintenance costs by 30%–50%.
Implicit Costs:
· Energy Consumption: The water treatment system and main console collectively account for over 30% of long-term operational energy costs.
· Maintenance Costs: Include preventive service contracts and spare part replacement fees.
3. Reliability Assessment
Supplier Due Diligence Checklist:
*Industry Certification: Must comply with ISO 13485 (Medical Device Quality Management System).
*Clinical Validation: Provide third-party failure rate reports verified by medical institutions.
*Emergency Support: Check if the supplier maintains a regional service center within 200 km for timely response.
*System Longevity: Core components such as blood pumps and control boards should have a designed lifespan of 8 years or more.
4. System Integration Capability
Infrastructure Compatibility:
· Verify that the water treatment system output interface matches the existing plumbing network.
· Ensure electrical specifications (voltage, power capacity) comply with the hospital’s distribution standards.
Digital Connectivity:
· The hemodialysis system should support HL7 or FHIR communication protocols for direct integration with hospital Electronic Medical Records (EMR).
· Provide automated data export templates containing key treatment metrics such as Kt/V values and ultrafiltration volume.
5. Expansion and Workflow Planning
|
Layout Type |
Application Scenario |
Workflow Optimization Suggestion |
|
Linear Layout |
Space-constrained clinics |
Place consumable carts along one side of the treatment beds |
|
Dual-Island Layout |
Centers with 20+ dialysis stations |
Position the nurse station in the center; separate clean and contaminated zones at opposite ends |
|
Modular Unit Layout |
Hospitals planning phased expansion |
Reserve water and power interfaces for seamless future capacity upgrades |
Conclusion — CN MEDITECH’s Integrated Hemodialysis Solutions
As a professional partner specializing in hemodialysis system solutions, CN MEDITECH is dedicated to helping healthcare institutions deploy safe, compliant, and efficient dialysis setups. The company delivers value through three key pillars:
*Multi-Brand System Integration Capability
CN MEDITECH carefully selects globally certified equipment — including main dialysis consoles, water treatment units, and consumables — to ensure cross-brand compatibility.
This eliminates the risks associated with technical mismatches and enhances overall system reliability.
*Full-Cycle Delivery Assurance
The company provides a turnkey service that covers the entire process:
- Space planning and infrastructure design
- Equipment selection and configuration
- International certification support (CE, FDA, ISO documentation packages)
- On-site staff training and system startup assistance
This all-in-one delivery model ensures that each dialysis unit configuration meets international operational and safety standards from day one.
*Localized Support Network
With localized technical teams and spare parts centers, CN MEDITECH provides both distributors and hospitals with:
- Rapid emergency response for technical issues
- Continuous optimization and maintenance services to keep the system running efficiently
This ensures long-term stability, minimized downtime, and extended equipment lifespan across all hemodialysis systems in operation.
Partnership Invitation
Let CN MEDITECH assist you in building a compliant, reliable, and cost-effective dialysis treatment network — from a single clinic to a multi-hospital group.
Our integrated service framework delivers standardized management practices and robust contingency plans to help your facility achieve operational excellence and patient safety in every dialysis session.
