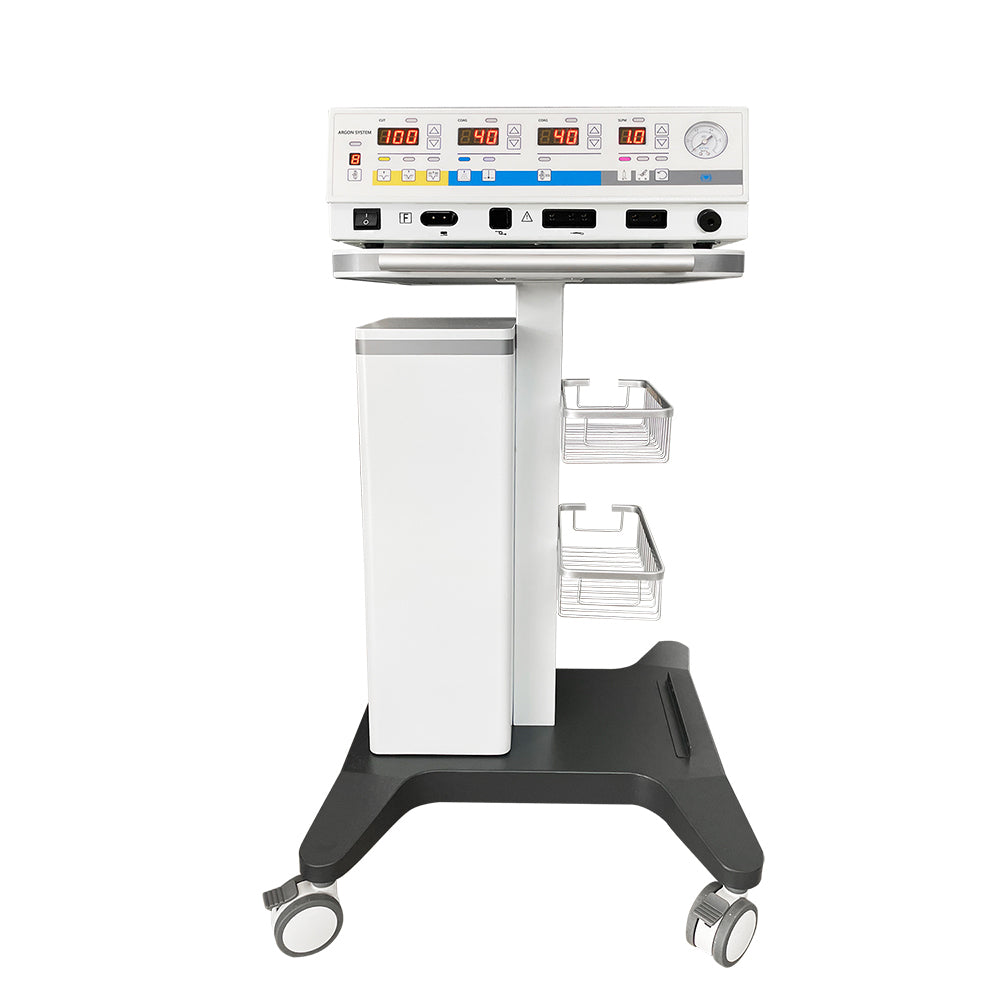

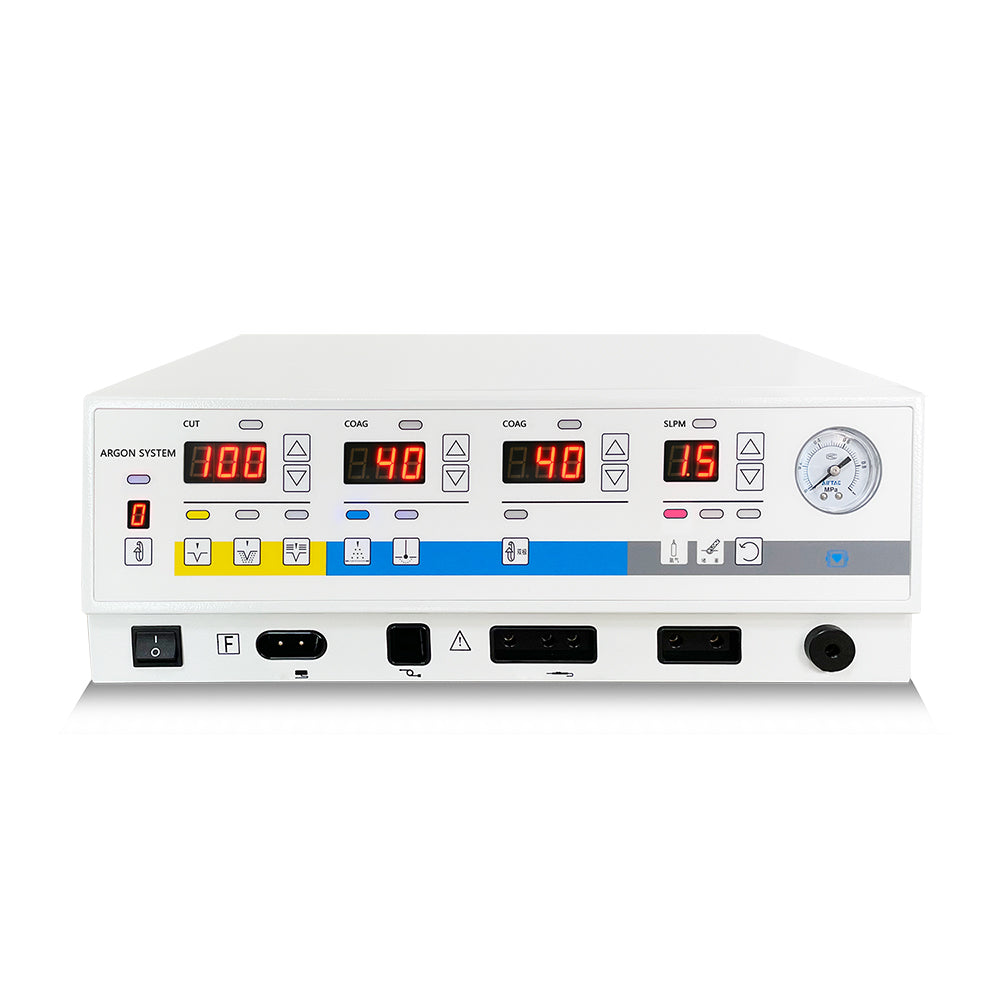

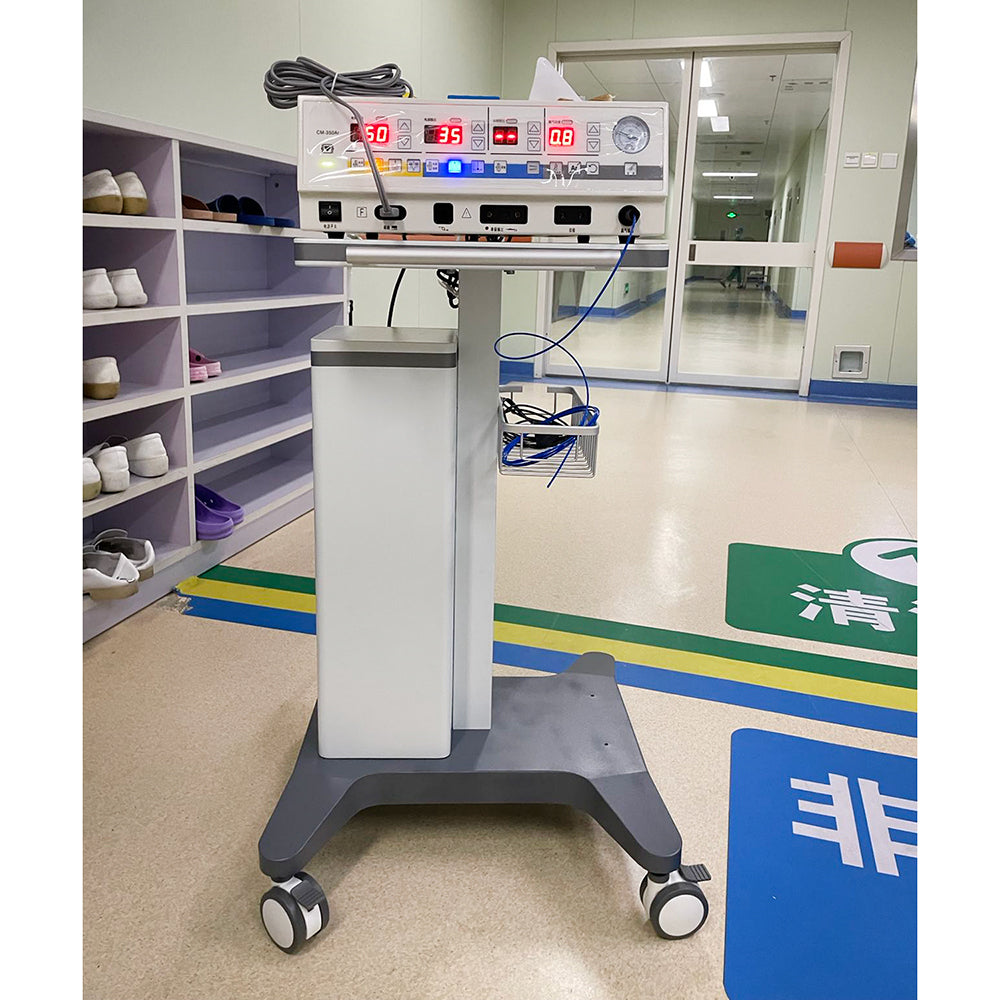

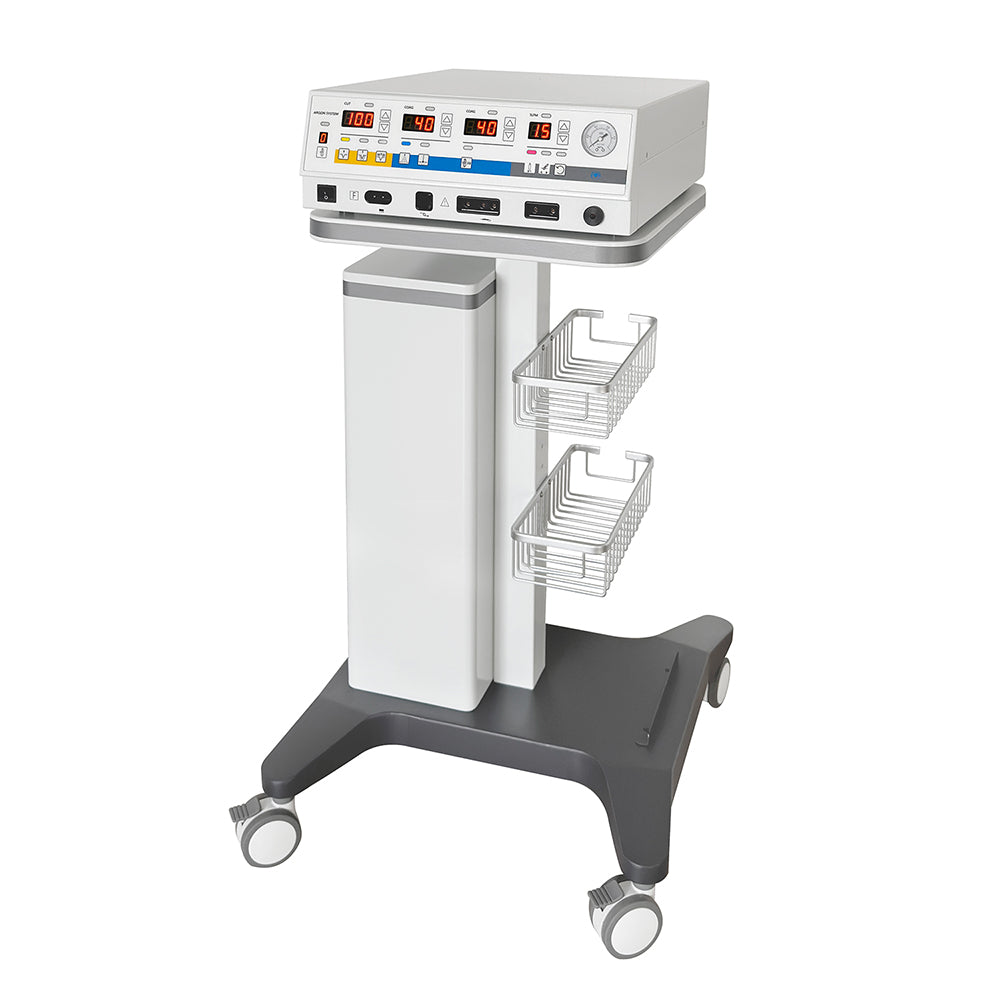

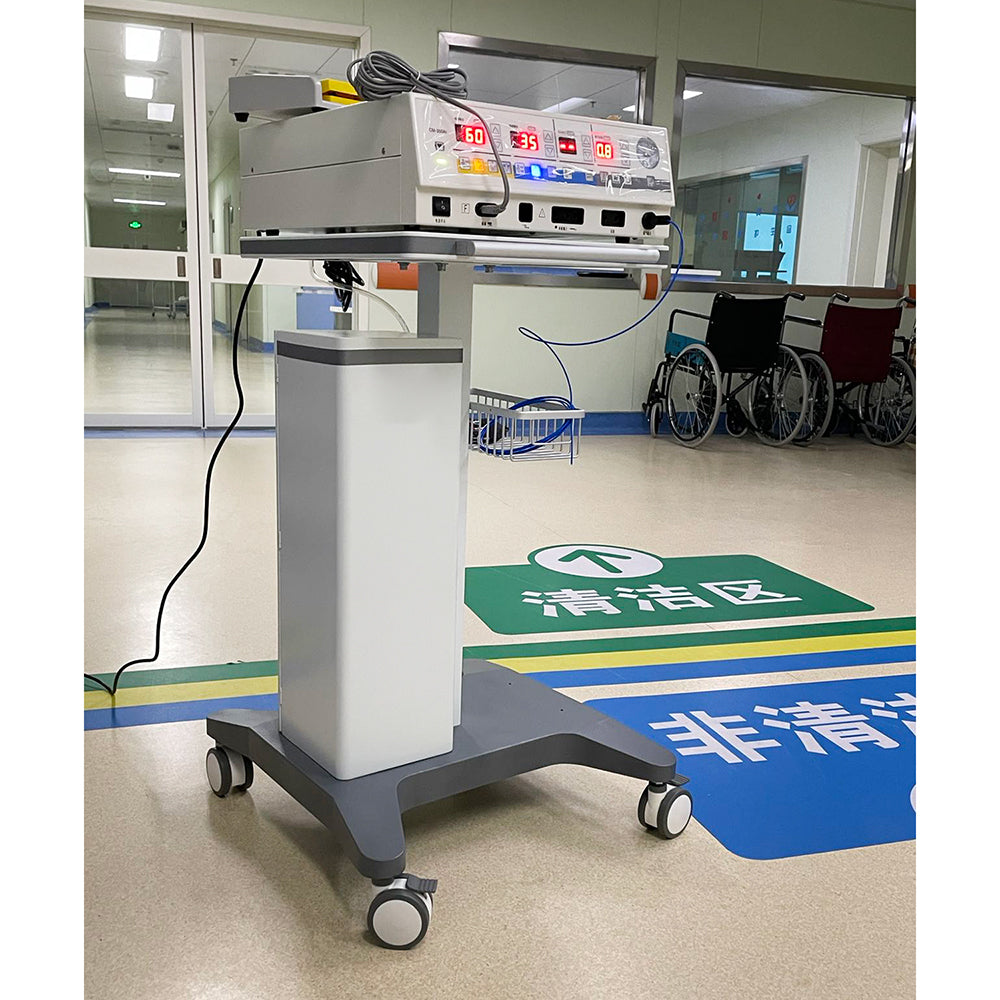

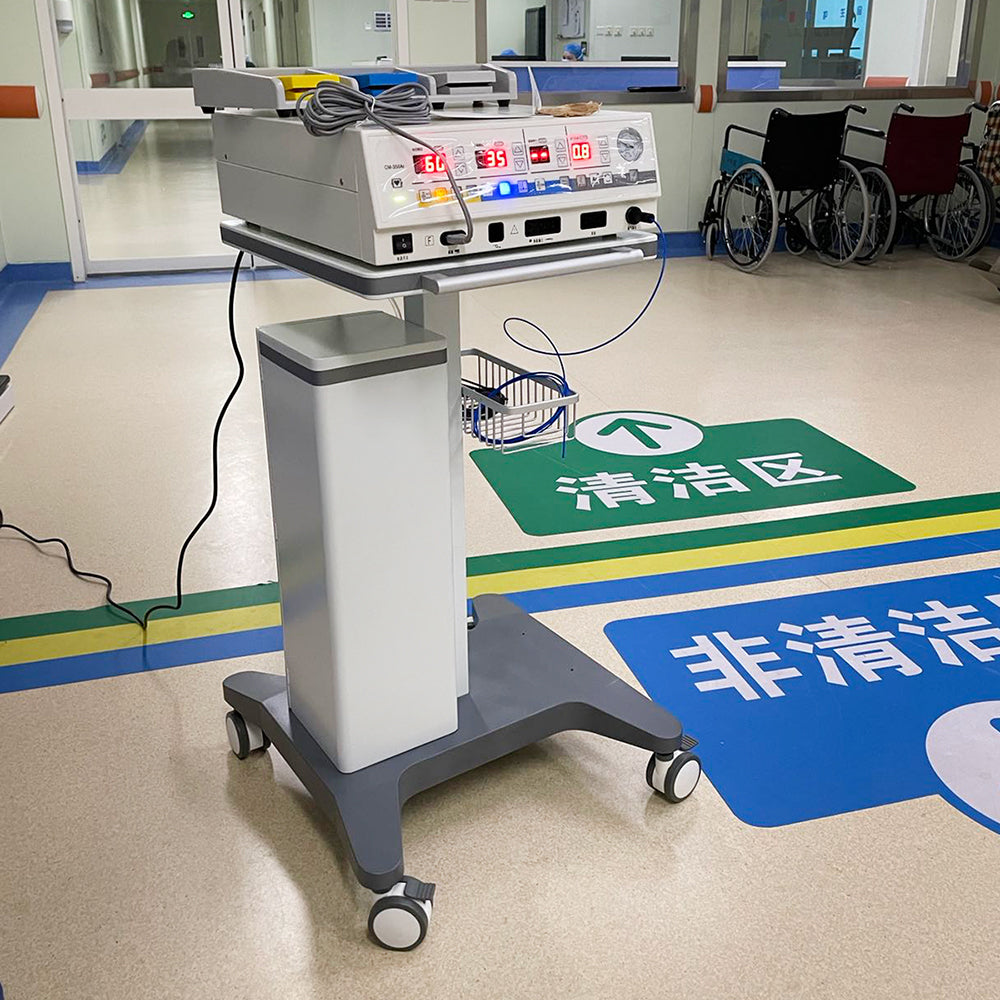

Argon Plasma Electrosurgical Unit For Polypectomy And Coagulation
Model:CNME0111Ar-1
Application:
The Argon Plasma beam permits non- contact coagulation of tissue, homeostasis of large surface bleeding can be stopped effectively and safely. And penetration depth is lesser than 3mm, no lead to carbonization.
Features:
*Full-function automatic power compensation.
*Both hand control and foot control outputs are available.
*Triple foot switch is controlled independently, convenient and fast.
*This machine has a power-off protection circuit, which can memorize the output set value of each function in real time.
*Adopt ENDOCUT alternative output endoscope mode to provide safe and optimal coagulation effect under endoscope.
*Output 10 groups of memory modes, support endoscopic treatment, ESD, ERCP, polypectomy and other operations.
*With adjustable high-frequency pulse cutter system, the damage to tissues is minimized, and smokeless cutting.
*The instrument is equipped with an argon pressure gauge to accurately and real-time display the argon working pressure.
* When the abdominal pressure pipe was blocked or twisted, an alarm indication will be sent and the argon output will be cut off.
*When the air tube or hand piece tube was blocked or twisted, an alarm indication will be sent and the argon output will be cut off.
*The high-frequency generator has a universal endoscope interface, which is used with gastroscope, enteroscope,laparoscope and other endoscopes.
*Passed EMC test.
Specifications:
|
Pure Cut |
1W~300W (Load 500Ω) |
|
Blend 1 |
1W~200W (Load 500Ω) |
|
Blend 2 |
1W~ 150W (Load 500Ω) |
|
ENDO Cut |
99% (Load 500Ω) |
|
Spray Coag. |
1W~ 80W (Load 500Ω) |
|
Desicate Coag |
1W~120W (Load 500Ω) |
|
BI-Coag |
1W~ 70W (Load 100Ω) (Optional) |
|
Argon |
Dual Argon airflow adjustment, accuracy: 0.1 L/min; allow wide range 0.20-0.50Mpa argon gas input unrestrict to local gas source |
How To Use
Electrosurgical unit
| Facet |
|
|
|
|
|
|---|---|---|---|---|---|

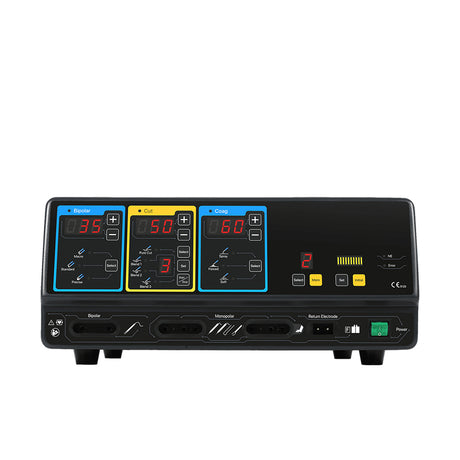

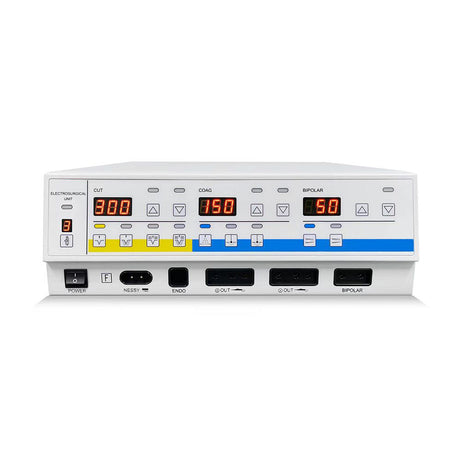

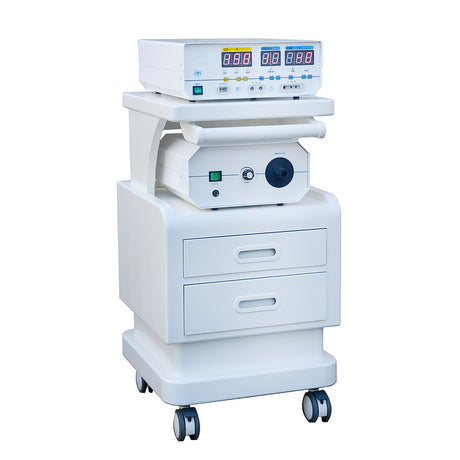

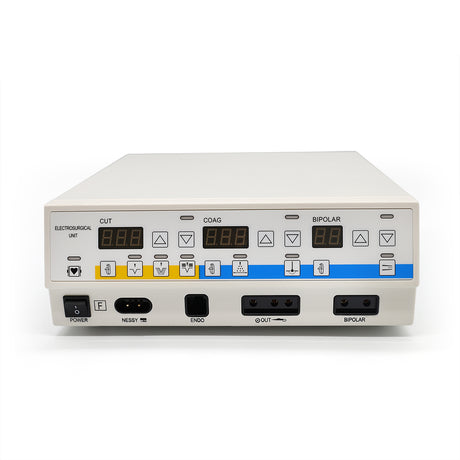

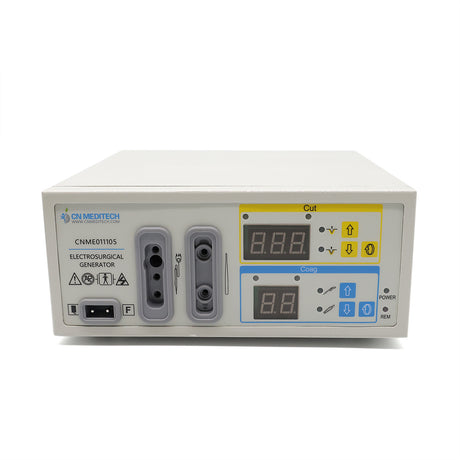

| Model | CNME011117S | CNME011105 | CNME011112A-LEEP | CNME011117 | CNME011118 |
| Maximum Power | Monopolar:400W Bipolar:70W | Monopolar:100W Bipolar:50W | Monopolar:200W Bipolar:50W | Monopolar:400W Bipolar:70W | Monopolar:300W Bipolar:100W |
| Applicable Surgeries | General surgery, Endoscopic surgery,Thoracic surgery, Orthopedics, Obstetrics and gynecology, Urologic surgery, Cerebral surgery,Microsurgery, ENT surgery and etc. | Dermatology, Dentistry, Plastic surgery | Gynecological Surgery | General surgery, Endoscopic surgery,Thoracic surgery, Orthopedics, Obstetrics and gynecology, Urologic surgery, Cerebral surgery,Microsurgery, ENT surgery and etc. | Endoscopic surgery, Gastroenterology surgery, Gynecology surgery, Urology surgery, Pediatrics surgery and etc. |
| Working Mode | ①Pure cut，②Blend cut 1，③Blend cut 2，④Spray Coag，⑤Contact Coag，⑥Standard Bipolar Coag | ①Pure cut，②Blend cut，③Contact Coag，④Bipolar Coag | ①Pure cut，②Blend cut 1，③Blend cut 2，④Soft Coag，⑤Strong Coag,⑥Bipolar Coag | ①Pure cut，②Blend cut 1，③Blend cut 2，④Blend cut 3，⑤Spray Coag，⑥Forced Coag，⑦Contact Coag，⑧Standard Bipolar Coag，⑨Auto Bipolar Coag | ①Pure cut，②Blend cut 1，③Blend cut 2，④Blend cut 3，⑤Spray coag，⑥Forced coag，⑦Soft coag，⑧Standard bipolar coag，⑨Precise coag，⑩Macro coag |
| Advantages | Applicable to all disciplines, Economical and versatile,Memory records features. | FDA Certification | The smoker is designed independently and can be used with other electrosurgical units | Two pencils work simultaneously,Memory records features. | Vessel seal/Ligasure,Two pencils work simultaneously |
