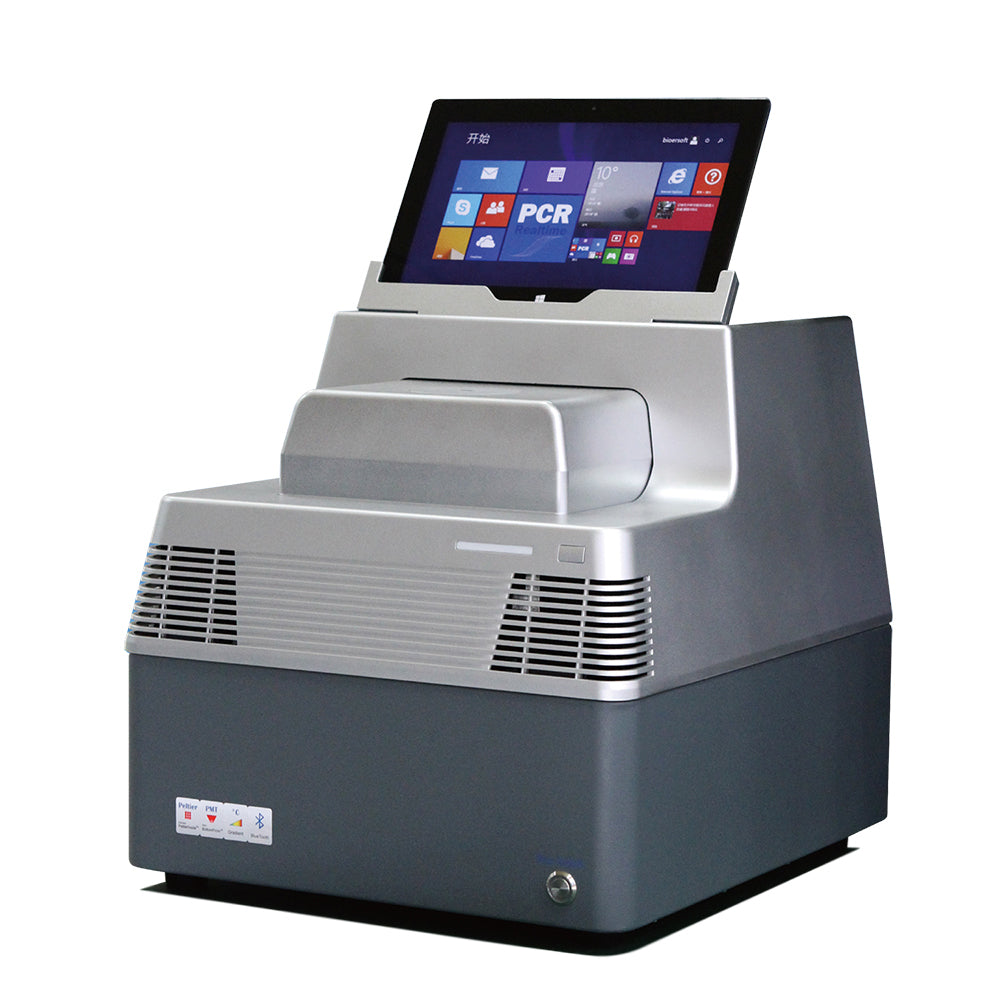

High Throughput Real-time PCR Machine
Model:CNME030702
A Real-Time PCR System is a highly sensitive instrument used to detect and quantify nucleic acids (DNA or RNA) in real-time. It is widely used in clinical diagnostics, research, infectious disease screening, genetic testing, and biotechnology applications.
Features:
*2/4/5/6 fluorescence channels
*96 Wells High Throughput
*Integrated Tablet Computer
Convenient Operation, Wireless Experience
*Upgraded Motors with Automatic Brake Function
*Max. Gradient Range 36℃
*3D Hotlid Design
Specifications:
|
Sample Capacity |
96-Well PCR plate, 12x 8-strip, 96 x 0.2ml(Bottom Transparent) |
|
Dynamics Range |
1~1010Copies |
|
Excitation Wavelength |
300-800nm |
|
Emission Wavelength |
500-800nm |
|
Detected Fluorescence |
F1:FAM,SYBR Green I ; F2:VIC,HEX,TET,JOE,CY3,NED,TAMRA; F3:ROX,TEXAS- RAD,F4:CY5;F5:CY5.5; |
|
Block Temp. Range |
4~105 °C(Minimum Increment: 0.1°C) SOAK Low Temp. Conservation Function |
|
Heating/Cooling Rate |
4.0 °C/s(max) |
|
Temp. Control Accuracy |
≤±0.2 °C |
|
Temp. Fluctuation |
≤±0.1 °C |
|
Temp. Uniformity |
≤±0.4 °C |
|
Temp. Control Mode |
BLOCK/Tube Simulation Mode (Automatic Control Based On Sample Volume) |
|
Sample Volume Range |
5~100μL |
|
Gradient Temp. Range |
1~36°C |
|
Hot-lid Temp. Range |
30~110°C(Adjustable, Default 105°C), Automatic Hot -lid |
|
Fluorescence Detection Repeatability |
5% |
|
Scan Mode |
Entire Plate or Designated Line |
|
Program |
Max 20 Segments for Each Program, Max 99 Cycles |
|
Operation Mode |
Continuous |
|
Scan Period |
5.5s |
|
Power Supply |
100-240V~ 50/60Hz 600W |
|
Dimension(L x W x H) |
410mm x 386mm x 352mm |
